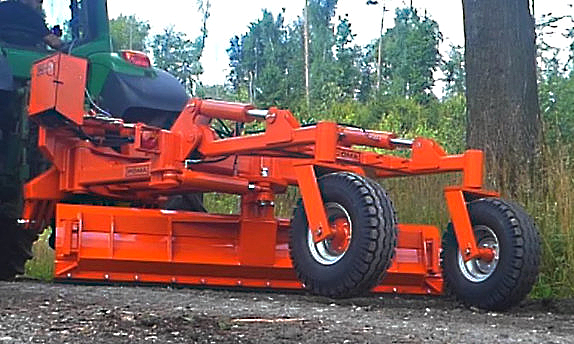

PÖMA – Mounted Grader AG 225
With the AG 225, we offer an extremely robust machine that has been developed over many years for road and path construction. Thanks to the central pivot joint, highly flexible work on shoulders, ditches, and embankments is possible. Suitable tractor power for this is between 100 and 180 kW.
Standard Equipment
- Parallel frame
- Three-point hydraulics Cat. 2 or Cat. 3
- 4 degrees of freedom for all applications
- Control panel in the tractor with joystick operation
- Hydraulic adjustments with overload protection
- Tilt adjustment via robust central pivot joint
- Wear-resistant, replaceable scraper bars
- 3-chamber lights, with visual warning signs
Technical Data
| Working width | 225 cm |
| Working depth | 12–20 cm |
| Blade height | 54 cm |
| Side shift left/right | 90 cm |
| Blade swivel angle | stepless up to +- 45° – manually rotatable by 180° |
| Tilt angle | 18.5° (equals 33%) |
| Overall length | 370 cm |
| Weight | approx. 2200 kg |
Optional Equipment and Features
- Widened blade (270 cm)
- Attachable blade-extension (45 cm)
- Detachable side plates
- Mechanical rippers for hard soils
- Hydraulically adjustable rippers
- Duplex equipment - Hydraulically adjustable finishing blade for trowel effect (225 cm wide)
- Laser control with sensors for precise height positioning to achieve perfect levels
